Loss of joint alignment can represent severe injury even in the absence of a fracture.
Foot anatomy xray. The distal tibia and fibula articulate with each other at the distal tibiofibular joint which is more commonly referred to as the tibiofibular syndesmosis or simply the syndesmosis. Head of the 1st metatarsal. This webpage presents the anatomical structures found on foot radiograph.
Ankle anatomy sprain clinical anatomy fracture radiology x ray. Foot anatomy xray is free hd wallpaper. Approach to foot series.
Osseous radiographic anatomy of the upper extremity duration. When checking any post traumatic foot x ray it is crucial to assess alignment of the bones at the joints. Xray medial oblique foot anatomy.
Remember to check the whole film though. 1 fibula 2 cuboid 3 5th metatarsal bone 4 tibia 5 talus 6 navicular 7 cuneiform 8 1st metatarsal bone 9 proximal phalanx 10 distal phalanx. Douglas gillard bs dc spine researcher 17151 views.
Normal right foot radiographs in a young adult female for reference. Foot radiograph an approach foot radiographs are commonly performed in emergency departments usually after sport related trauma and often with a clinical request that states lateral border pain. Proximal phalanx of the 1st digit.
You can download foot anatomy xray in your computer by clicking resolution image in download by size. The foot series is comprised of a dorsoplantar dp medial oblique and a lateral projection. Anatomy the ankle is a synovial joint composed of the distal tibia and fibula as they articulate with the talus.
Often a foot x ray is also requested for the investigation of osteomyelitis arthritides or. Dont forget to rate and comment if you interest with this wallpaper. Ip interplangeal joint.
The series is often utilized in emergency departments after trauma or sports related injuries 24. 1 calcaneus 2 cuboid 3 5th metatarsal bone 4 talus 5 navicular 6 cuneiform.
X Ray Foot Stock Photo Image Of Human Anatomy Medicine
Foot Forelimb Lateral Canine X Ray Positioning Guide
Xray Medial Oblique Foot Anatomy Diagram Quizlet

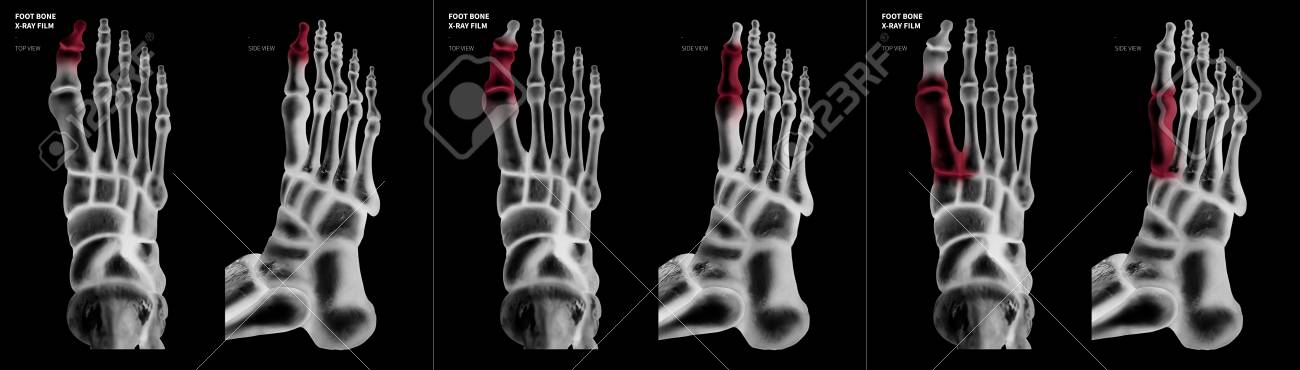

X Ray Film Collection Of Big Toe Foot Bone With Red Highlights
